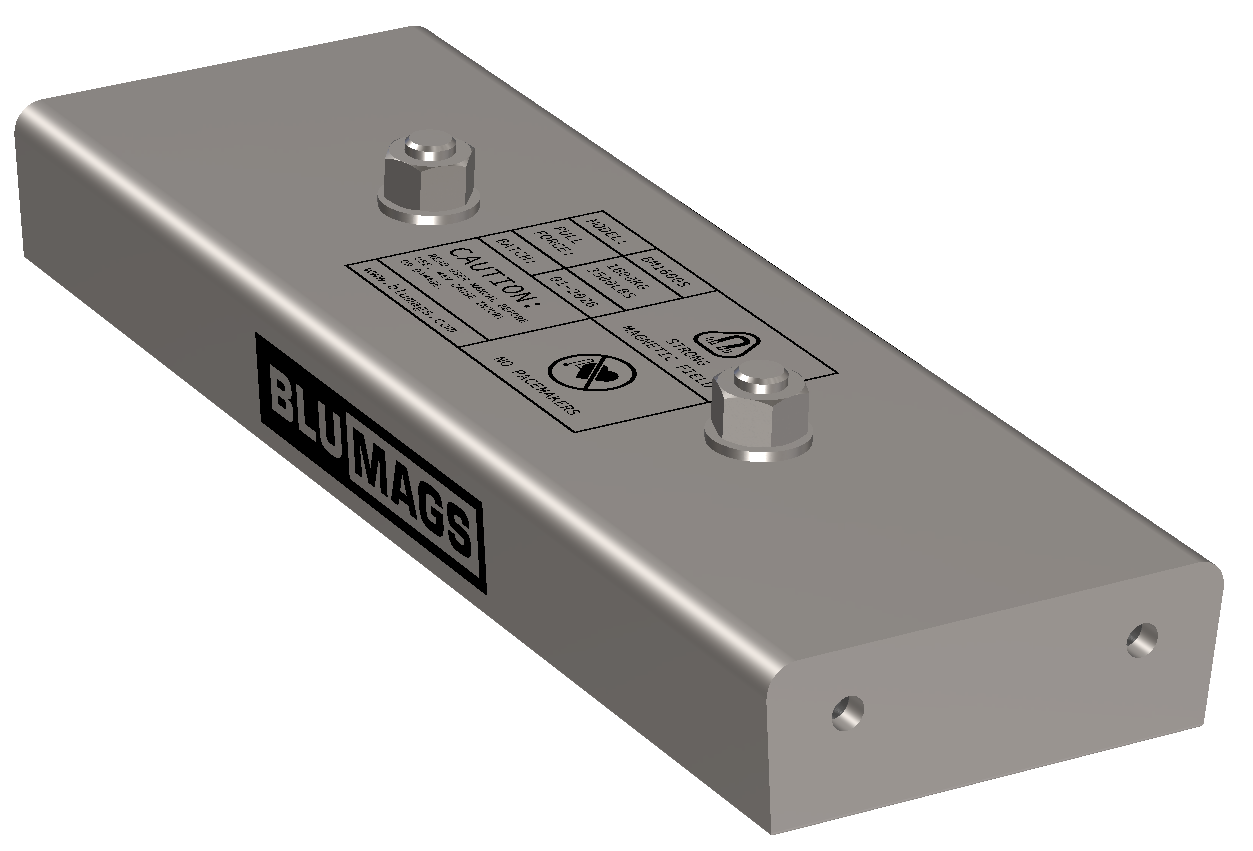

BM1600S
The BM1600S is the same magnetic module used inside the BM3200S magnet assembly, available as a standalone unit for custom integration.
It delivers an ideal holding force of 1600 kg in a compact package, ready to be built into your own tool skid, adapter plate or subsea assembly.
While the BM3200S assembly is designed for use by ROV, the standalone BM1600S can be used in any configuration, whether operated by humans or machines.
Mount via the two the existing vertical M10 bolts (replace them with longer bolts if necessary), or use the 2 × 2 tapped M8 holes on the sides for a flexible, low-profile attachment.
BM1600S
The BM3200S Module, Standalone
The BM1600S is the magnetic module at the heart of the BM3200S magnet assembly. We offer it as a standalone item so you can integrate up to 1600 kg of holding force directly into your own ROV tooling, frame or subsea setup instead of buying a complete assembly.
Flexible Mounting Options
The module is prepared for two mounting strategies. Use the two M10 clearance holes on top for an adapter plate connection, or bolt through the 2 × 2 tapped M8 holes on the sides to build it flush into your own structure.
APPLICATIONS
Pairs well with
Ready to spec your BM1600S?
Talk to engineering, get pricing, or grab the datasheet — we'll handle the rest.
